VOID CLOUD Private

Part 1. Introduction

VOID CLOUD Private is a Cloud Recognition service that runs on private network.

VOID CLOUD Private enables users to deploy VOID CLOUD Recognition service, which includes VOID CLOUD ( Image Target Recognition ) and VOID CLOUD ( VideoPlayback ), on their private network. VOID CLOUD Private gives users the power to manage, control and maintain independently.

Part 2. Getting Started

Warning

This tutorial describes the necessary steps to deploy the server of VOID CLOUD Private and the differences in Unity setting.

So please make sure you already familiar with the Unity setting of VOID CLOUD ( Image Target Recognition ) and VOID CLOUD ( VideoPlayback ).

If you’re not familiar with those two features, we suggest you read VOID CLOUD ( Image Target Recognition ) and VOID CLOUD ( VideoPlayback ) before you get started.

Part 3. Development Environment

You need to install and prepare your development environment as below before you start.

< Server-Side >

VOIDAR_PrivateClouds

? VOID CLOUD Private deployment package.

? Download: VOIDAR_PrivateClouds_v1.0.zip (278.86 MB)

Server Requirements

  • 1 application server for install the VOID CLOUD Private applications

    Hardware Recommendations: CPU: 8-core, RAM: 16GB

  • 1 database server for install mysql5.7

    Hardware Recommendations: CPU: 4-core, RAM: 16GB

  • 1 cache server for install redis2.8

    Hardware Recommendations: CPU: 2-core, RAM: 4GB

Server OS

? Ubuntu Server 16.04.4 LTS

  • MySQL 5.7
  • Redis 2.8

< Client-Side >

OS

  • Windows 7 or higher
  • OS X 10.10 or higher

Unity Version Support

Unity3D Version VOID AR SDK Full Features
5.6.x Support All Features
2017.x Support All Features
2018.x Support All Features
2019.1.x Support All Features
2019.2.0 Support All Features
Note

Unity3D of this tutorial: Unity 2017.4.13

Unity3D Download: https://unity3d.com/cn/get-unity/download/archive

Part 4. Server Deployment

Step 1. Install System

Install Ubuntu Server 16.04.4 LTS

Step 2. Add new user and login

  1. Add new user: voidar

    useradd -r -m -s /bin/bash voidar

  2. Set Password

    passwd voidar

    1

  3. Grant Root Privilege

    vi /etc/sudoers

    Add voidar ALL=(ALL:ALL) ALL below root ALL=(ALL:ALL) ALL

    2

Step 3. Install jdk1.8 and set PATH in java

  1. Install

    Copy jdk-8u181-linux-x64.tar.gz to /home/voidar/ from deployment package.

    tar -zxvf jdk-8u181-linux-x64.tar.gz
sudo cp -rf jdk1.8.0_181 /usr/local/

  2. Set PATH

    sudo vi /etc/profile

    Add the following code to the last line：

    export JAVA_HOME=/usr/local/jdk1.8.0_181

    export PATH=$JAVA_HOME/bin:$PATH

    export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar

    3

  3. Bring the configuration into effect

    source /etc/profile

    4

Step 4. Install mysql 5.7 and redis 2.8, then launch both

Step 5. Install VOID AR toolkit

Copy libVoidarUtil.so to /home/voidar/ from deployment package.

sudo cp -rf libVoidarUtil.so /usr/local/lib/
sudo ldconfig

Step 6. Install resin and configure

  1. Install

    Copy resin-4.0.58.tar.gz to /home/voidar/ from deployment package.

    sudo apt-get install libssl-dev
tar -zxvf resin-4.0.58.tar.gz
cd /home/voidar/resin-4.0.58
mkdir libexec64
./configure --enable-64bit --enable-jni --prefix=/home/voidar/resin-4.0.58
sudo make
sudo make install
sudo chmod 777 /home/voidar/resin-4.0.58/log

  2. Configure

    Copy resin.properties to /home/voidar/ from deployment package.

    cp –rf resin.properties /home/voidar/resin-4.0.58/conf/
    Note

    If the server RAM is not 16GB, you need to set the jvm size based on your server RAM.

Step 7. Create database instance and execute script

Login mysql, create voidar_develop instance using utf-8 and execute script create.sql

mysql -h xxx -u xxx -pxxx voidar_develop < create.sql

Step 8. Deploy VOID CLOUD Private applications

Copy voidardevelop and voidarmodule to /home/voidar/resin-4.0.58/webapps from deployment package.

  1. Add resource directory

    mkdir /home/voidar/bundles
mkdir /home/voidar/images
mkdir /home/voidar/index
mkdir /home/voidar/logs

  2. Modify voidardevelop

    Go to directory voidardevelop\WEB-INF\classes and modify configuration file:

    Modify redis.properties, properly setting up redis.

    5

    Modify jdbc.properties, properly setting up database.

    6

    Modify BUNDLE_DOWNLOAD_URL and PROJECT_URL in settings.xml, properly setting up the address. Modify the IP into your IP.

    Modify EMAIL_ADDRESS、EMAIL_PORT、EMAIL_ACCOUNT and EMAIL_PASSWORD in settings.xml, properly setting up the mail information.

  3. Modify voidarmodule

    Go to directory voidarmodule\WEB-INF\classes and modify configuration file;

    Modify jdbc.properties, properly setting up database.

Step 9. Start and access resin

Start resin and access by http://IP:PORT/voidardevelop/loginp

You can login with the following account:

Account: admin@voidar.com

Password: 123456

Part 5. Differences in Unity setting

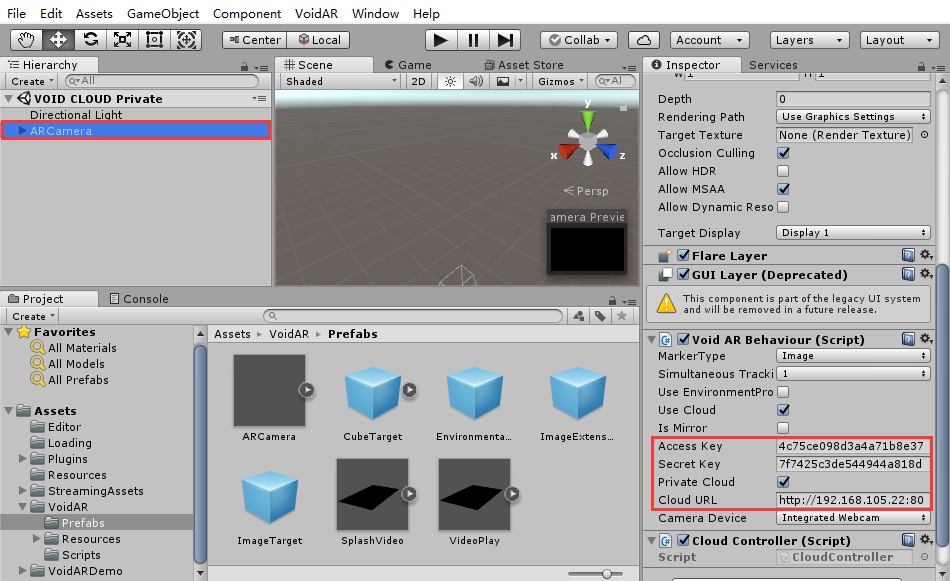

Select ARCamera in Unity project, and look up in the “Inspector” area on the right side, setup “Void AR Behaviour (Script)” properties.

  • Check “Private Cloud”
  • Cloud URL: the address of private cloud server
  • AccessKey: your accessKey from your account in private cloud platform
  • SecretKey: your secretKey from your account in private cloud platform

7

Other unity settings and tutorials please visit: "VOID CLOUD ( Image Target Recognition )", "VOID CLOUD ( VideoPlayback )"

By here, VOID CLOUD Private process is done.
